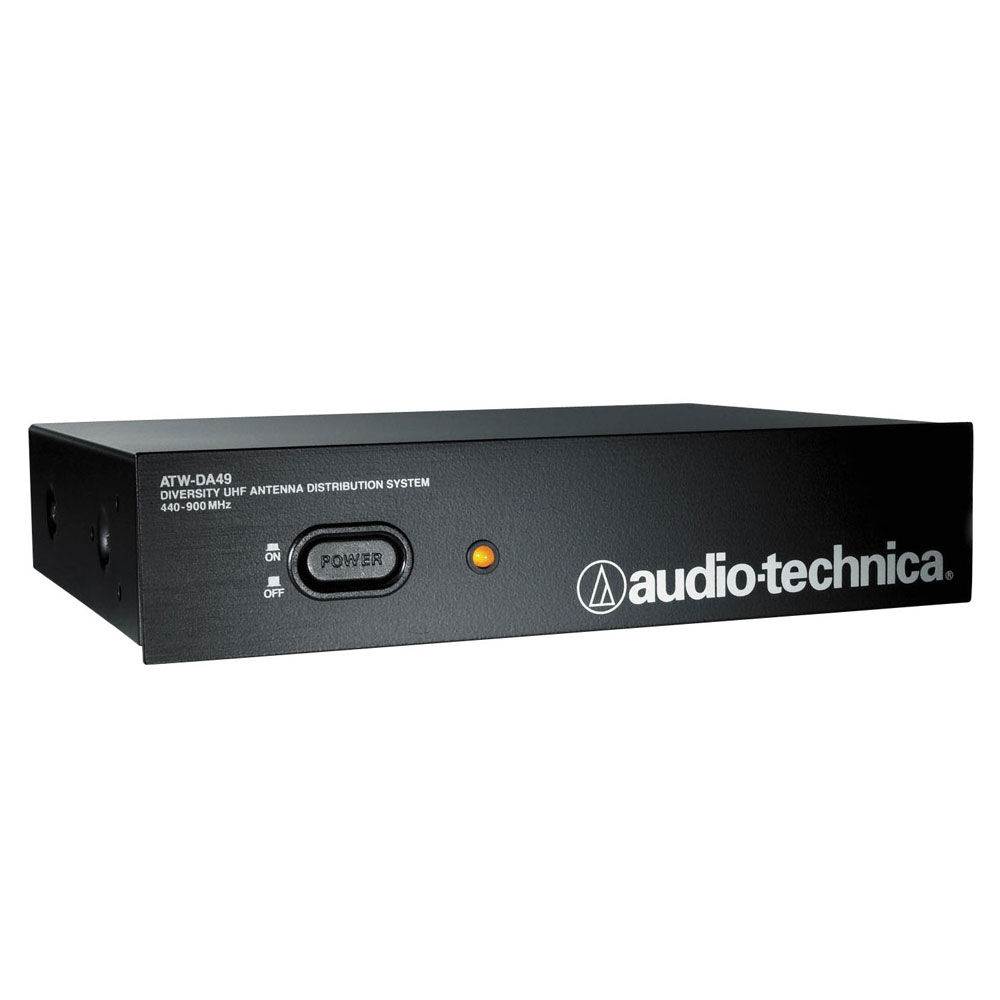

Audio-Technica ATW-DA49 UHF antenska distribucija
Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.
Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.
Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.
Opis proizvoda
The ATW-DA49 is a UHF (wide-band 440-900 MHz) active unity-gain diversity antenna distribution system that enables one pair of antennas to feed multiple wireless systems.
Tehničke specifikacije proizvoda
- Bandwidth :440-900 MHz
- Gain: 0 dB typical (within specified bandwidth)
- Impedance: 50 ohms typical (within specified bandwidth)
- Antenna Power (optional): +12V DC,center positive,100 mA maximum per antenna input (2 total)
- Termination Type: BNC Female (10 total)
- Power Supply: Desktop Switching Power Supply Rated at 3A @ 12V DC or 36 Watts.
- Input Voltage: 100-240V AC via detachable IEC 320/C14 cable.
- Output is provided on an overmolded 3-pin Molex-style termination.
- Dimensions (Base unit only): 210.0 mm W x 45.5 mm H x 176.0 mm D
- Weight: 0.9 kg
- Accessories Included: IEC 320/C14 power cable;10 BNC-to- BNC 34" RF cables; 4 DC power interconnect cables; ATW-RM1 rack kit for front mounting antennas and adaptation to a 19" rack.
