Crown 135MA pojačalo

Vreme isporuke: 7 do 10 dana!

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

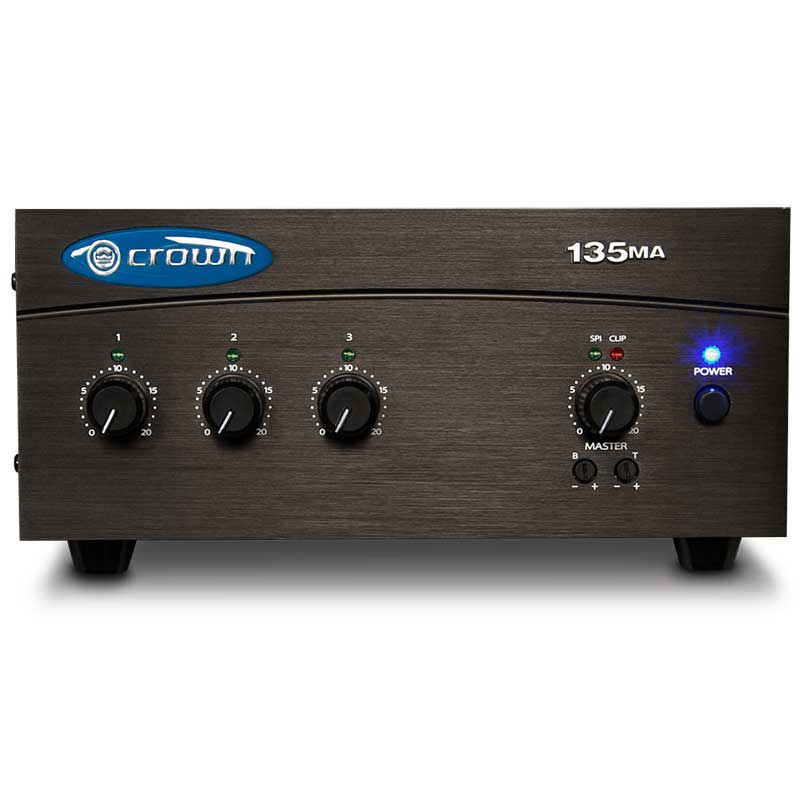

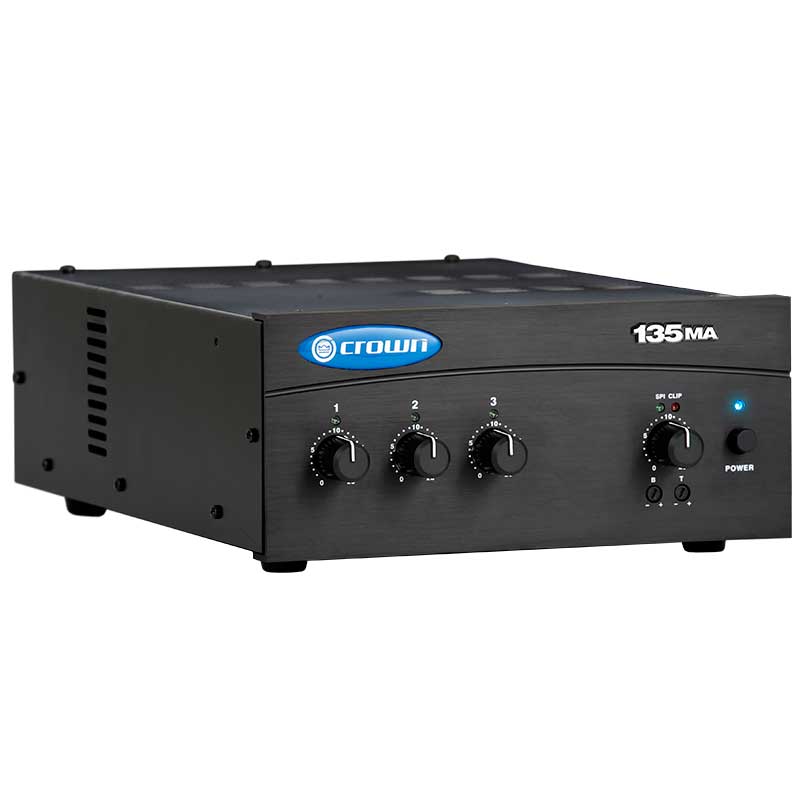

Crown's 135MA and 160MA are high value mixer-amplifiers for commercial audio. They provide 8-ohm and constant-voltage outputs (70V and 100V). Typical uses are paging, background music, and music-on-hold. The 135MA provides 3 inputs (each with a volume control) and a 35W amplifier output. The 160MA provides 4 inputs (each with a volume control) and a 60W amplifier output. Other features include priority muting, voice activated muting, phantom power, and bass and treble controls.

Tehničke specifikacije proizvoda

  • 3 inputs (each with a volume control), and one 35W amplifier output channel in 135MA
  • 4 inputs (each with a volume control), and one 60W amplifier output channel in 160MA
  • Ideal for paging, background music, and music-on-hold

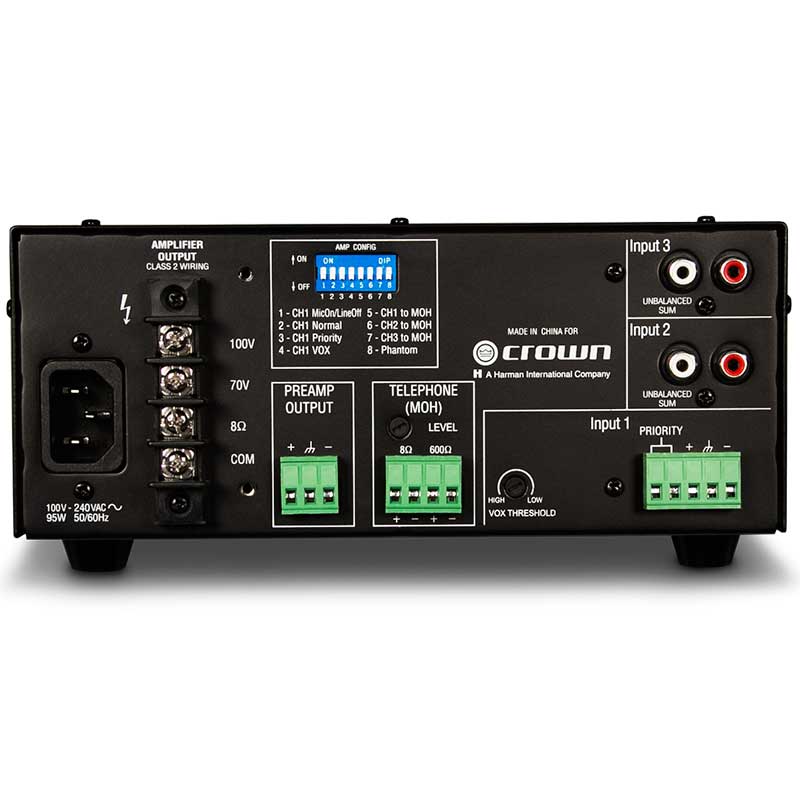

  • Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs
  • Priority muting by VOX or external switch
  • Bass and Treble controls on master output
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
  • Frequency Response (at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB
  • Signal to Noise Ratio (ref. to rated power, master volume at minimum): Mic: > 58 dB, Line: > 60 dB, Telephone: > 60dB, Inputs 2 or 3: > 78 dB
  • THD+Noise < 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz
  • Input Sensitivity (for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV
  • Input Impedance (nominal) Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms
  • Crosstalk -82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum)
  • Line Output Level (nominal) 1V into 10 kilohms
  • Phantom Power 15 VDC
  • AC Line Voltages Available Universal Power Supply. Line voltage tolerance +15%, -20%
  • Operating Temperature/Humidity 0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)
  • Storage Temperature -20 degrees C to 85 degrees C
  • IEC Power Connector 15A
