D&R Airlab DT mikseta

Pozvati za cenu

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

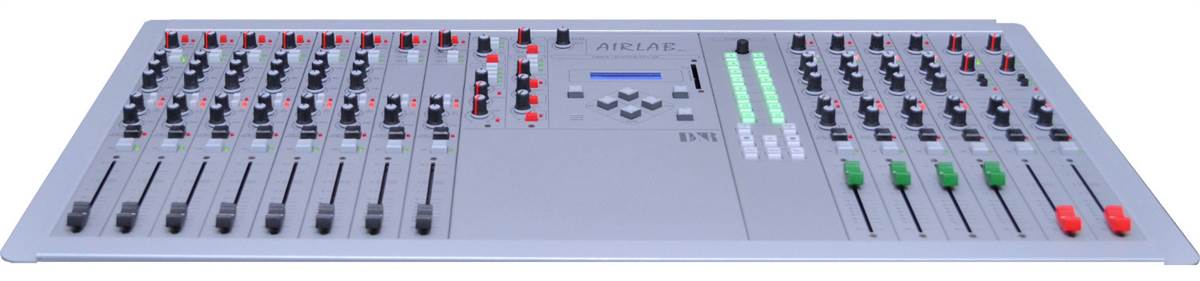

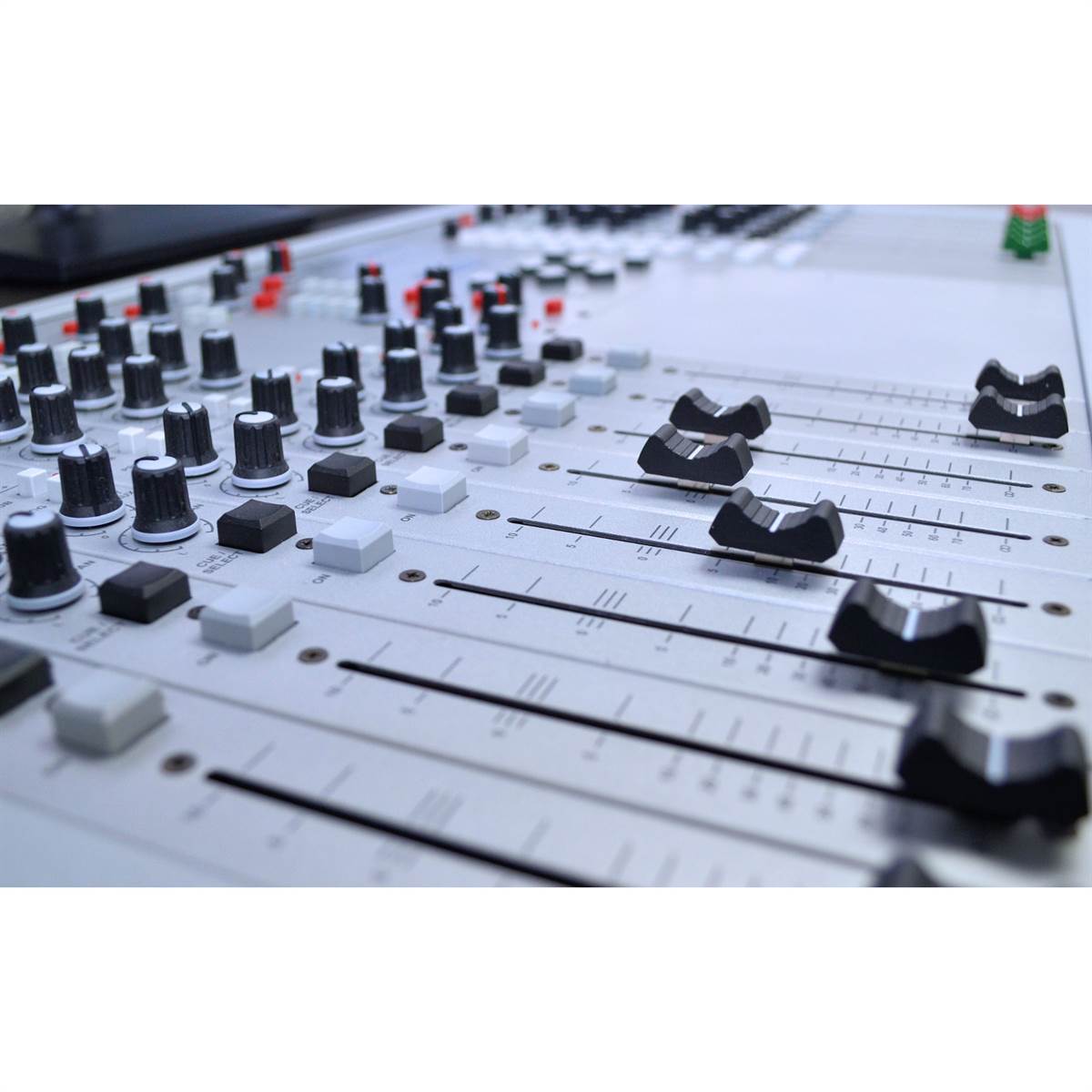

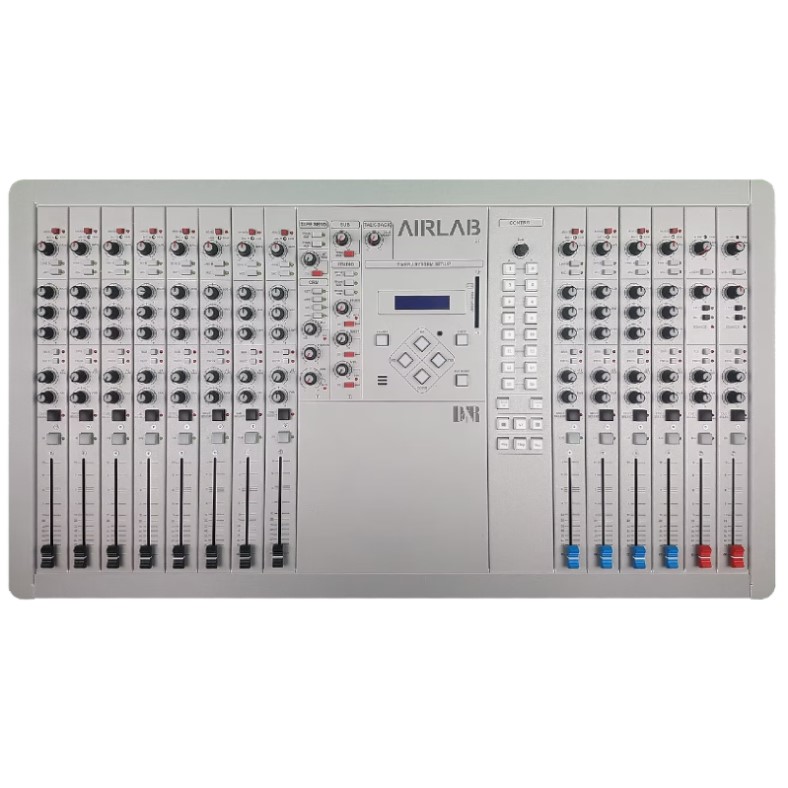

D&R Airlab DT mikseta. AIRLAB DT je radijska ON-AIR konzola. Vrlo je pouzdana i predstavlja nabolji odnos funkcionalnosti i jednostavnosti upotrebe.

Tehničke specifikacije proizvoda

  • Mic input: Bal. 2kOhm - 128dBr (40dB gain range plus 30dB of trim range)
  • Line input: Bal. 10kOhm +/- 20dB gain range.
  • Telco input: (XLR) 10kOhm bal. 0dBu nominal.
  • COMM: mic input max. gain: 1kHz 85dB
  • Line input: Max. gain 1 kHz 80dB
  • EQUALIZATION
  • Left/Right: +6dBu electronically balanced (transformer balancing is an option)
  • Sub: +6dBu electronically balanced
  • All other outputs: +6dBu unbalanced
  • OUTPUTS
  • Frequency response: 20-20.000 Hz +/-0.5dB
  • Harmonic distortion: 0.035% (VCA in, 2nd harm)
  • Cross talk: less than -90dBr
  • Noise: -86dBr
  • Headroom: +22dB internal, 16dB on outputs
  • Mix-Minus rejection: @1kHz -60dB
  • Channel fader attenuation: 1kHz, 100dB
  • REMOTES
  • Spec: All channel remotes are on stereo jack sockets, Start/Stop switching is by isolated reed relays, Both ON-AIR 1 and 2 (red light) outputs are isolated by relays.
  • DIMENSIONS AND WEIGHT
  • AIRLAB-DT: 26 kg / 57.2 Lbs
  • Drop through mounting hole dimensions: 775mm x 415mm (width x depth)
  • Helicopter view dimensions: 825,00mm x 455mm
  • Front thickness: 3 mm
  • Corner Radius: R 20
  • Heigth: front 80mm, backside 190mm
