D&R Lyra-4 digitalna mikseta
Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.
Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.
Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.
Opis proizvoda

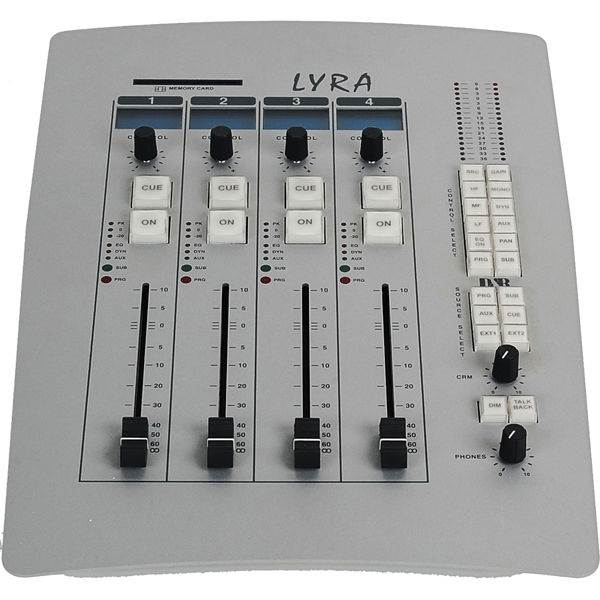

D&R Lyra-4 digitalna mikseta. Full digitalni višenamenski mikser za radio i televiziju. Srce svakog Lyra modela je DSP engine. Vrlo pouzdana platforma koja brzo i pouzdano odgovara na sve zadate funkcije. Iako je Lyra digitalna konzola, upravlja se sa istom udobnošću kao i bilo koja konvencionalna analogna mikseta. Lyra sadrži jedinstvenu mogućnost da se kontroliše putem interneta što umnogome olakšava rad i štedi vreme. Poseduje tropojasni ekvilajzer parametričkog tipa.
Tehničke specifikacije proizvoda
- MIC inputs : Electronically balanced, Input impedance 2k Ohm, Noise -128dBr (60db gain range), Input sensitivity -70dBu up to +20dBu (PAD), Total harmonic Distortion+Noise 0,002% at 1kHz G=100
- CMRR MIC inputs: 85dB @ 1kHz, maximum gain
- Frequency response: 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz), Crosstalk 1kHz < -115dBr, Phantom is switchable +48 Volts
- Line inputs: Electronically balanced, Input impedance 10k Ohm, Input sensitivity +6dBu, maximum input +26dBu (+/- 20dB gain range), Dynamic Range 118dB (AD converter PCM 1804), Total harmonic Distortion+Noise 0,004% at 1kHz G=100, CMRR Line inputs: 30dB @ 1 kHz, Frequency response 20Hz - 20kHz ± 0.1dBr, (sample rate 48kHz)
- Line Outputs: Crosstalk 1kHz < -120dBr, Electronically balanced, Output impedance 50 Ohm., Nominal output level +4dBu / -10dBv,balanced (optional transformers), Dynamic Range 118dB (AD converter PCM4104), Total Harmonic Distortion plus Noise 0,001%, Frequency response 20Hz - 20kHz ± 0.1dBr, (sample rate 48kHz)
- Phones Output: Stereo unbalanced, : Output impedance 5R Ohm, Nominal output level +6dBu, maximum output +26dBu, Max. Output power, 1W into 32R Ohm, 80mW into 600R Ohm, Dynamic Range 114dB (AD converter CS4385), Frequency response 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz)
- Digital Inputs: AES/EBU (AES3) or S/P-DIF Transformer balanced, Input Impedance: 110R Ohm / 75R Ohm (jumper setting), Differential input sensitivity 200mV, Dynamic Range 112dB (AD converter PCM 1804), Total Harmonic Distortion plus Noise (sample rate converter), -105dBfs (0.001%), Sampling rate up to 192kHz
- Digital outputs: AES/EBU (AES3) or S/P-DIF, 112db Dynamic range (DAC CS8420), Output Impedance: 110 Ohm, Output level: AES3 2-5 Vpp, Clock output 75 Ohm TTL, 24 bit, 32kHz, 44.1kHz or 48kHz, Total Harmonic Distortion plus Noise -102dB
- GPIOs: All GPO’s are by opto isolated relays able to handle a maximum of 50V at 200mA or 5V TTL 560R (8mA) out
- EQ: EQ is 3 band, any band can perform one of the following functions/specifications: Low : +/- 18 dB (120Hz center shelving, Q: 0.1 to 10 variable.
- DYNAMICS: Interactive one knob control of threshold, compression ratio, expander ratio, as well as attack and release times. Processing: 32 bit floating point, 8 stereo channels per DSP card.
- Channels: Level : 0dBu=0.775Vrms, 0dB internal = -20 dBFs.
- Clock: Sample rate: 32kHz, 44.1kHz, 48kHz, +/- 20ppm (internally synchronized)
- External sync: 32kHz, 44.1kHz, 48kHz +/- 50ppm, Jitter max 150pSec
- Power supply: Internally switched power supply. 100-240 Volt, 50/60Hz (1.5 A Max)
