Opis proizvoda

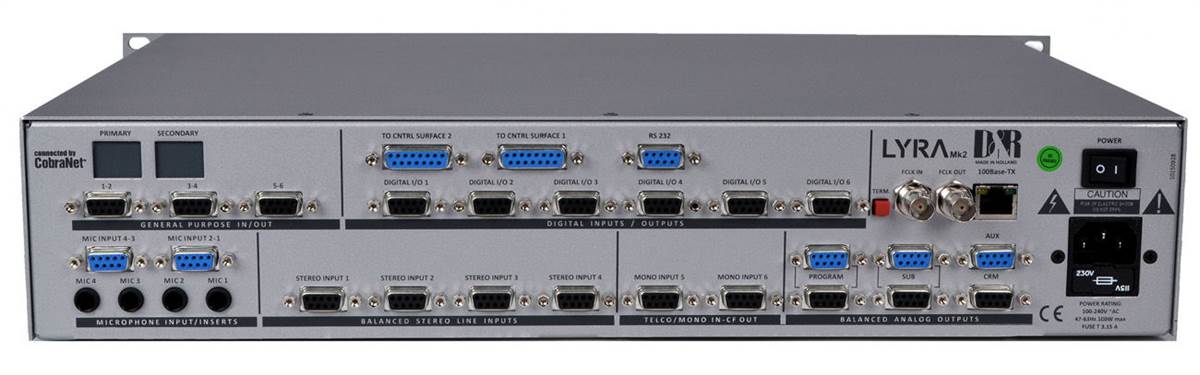

D&R Lyra I/O rack. The Lyra is a fully digital desktop production mixer. Its concept originates from heavy investigations among end users and distributors looking for a versatile compact small universal desktop mixer. The core of the Lyra is a sophisticated DSP engine. This processing engine involves the latest developments in DSP technology by Texas Instruments. An intense cooperation between T.I. and D&R has resulted in a digital audio mixer offering tremendous DSP power and a superb sonic quality. Although the Lyra is a digital console, it is operated with the same comfort as a conventional analog production mixer. No fundamental concessions have been made towards reliability, high speed controller-response and system stability. Apart from that there is the unique capability to control Lyra's functions over the Internet
Tehničke specifikacije proizvoda
- MIC inputs: Electronically balanced, Input impedance 2k Ohm, Noise -128dBr (60db gain range), Input sensitivity -70dBu up to +20dBu (PAD), Total harmonic Distortion+Noise 0,002% at 1kHz G=100
- CMRR MIC inputs: 85dB @ 1kHz, maximum gain
- Frequency response: 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz), Crosstalk 1kHz < -115dBr, Phantom is switchable +48 Volts
- Line inputs: Electronically balanced, Input impedance 10k Ohm, Input sensitivity +6dBu, maximum input +26dBu (+/- 20dB gain range), Dynamic Range 118dB, AD converter PCM 1804), Total harmonic Distortion+Noise 0,004% at 1kHz G=100, CMRR Line inputs: 30dB @ 1 kHz, Frequency response 20Hz - 20kHz ± 0.1dBr, (sample rate 48kHz)
- Phones Output: Stereo unbalanced, Output impedance 5R Ohm, Nominal output level +6dBu, maximum output +26dBu, Max. Output power, 1W into 32R Ohm, 0mW into 600R Ohm, Dynamic Range 114dB (AD converter CS4385), Frequency response 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz)
- DYNAMICS: Interactive one knob control of threshold, compression ratio, expander ratio, as well as attack and release times.
- Processing: 32 bit floating point, : 8 stereo channels per DSP card.
- Channels: Level : 0dBu=0.775Vrms, 0dB internal = -20 dBFs.
- Power supply: Internally switched power supply, 100-240 Volt, 50/60Hz (1.5 A Max)
