JBL CONTROL 14C/T plafonski 100V zvučnik
RSD19.168,87
(cena je sa uračunatim PDVom)
Dostupno po porudzbini! Vreme isporuke: 5 do 7 dana!
Dostupno za avansnu kupovinu
Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.
Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.
Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.
Opis proizvoda

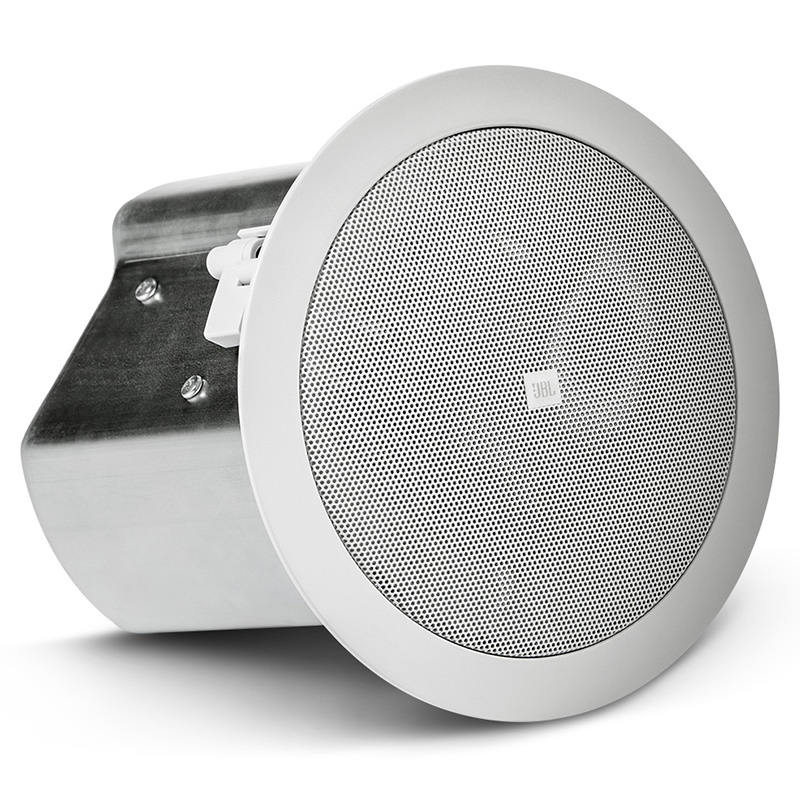

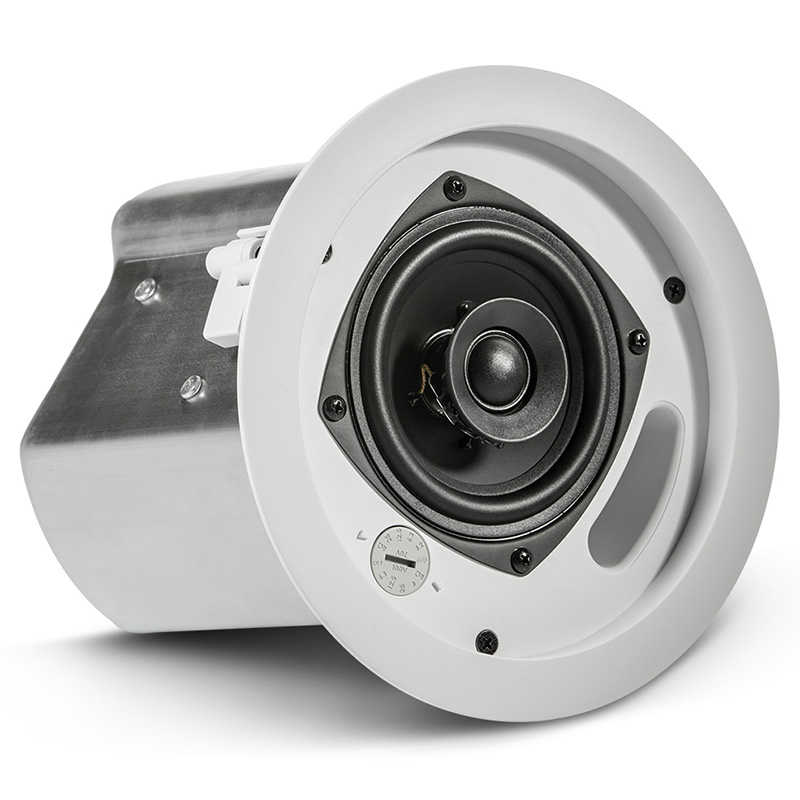

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
Tehničke specifikacije proizvoda
- Frequency Range (-10 dB) 74 Hz – 20 kHz
- Power Capacity (at low-Z) 60 Watts Continuous Program Power
- 30 Watts Continuous Pink Noise
- Transformer Taps 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
- Frequency Response (±3 dB) 100 Hz – 20 kHz
- Nominal Sensitivity 87 dB
- Nominal Coverage Angle 120° conical coverage
- Directivity Factor (Q) 7.6
- Directivity Index (DI) 8.1 dB
- Rated Maximum SPL 102 dB @ 1 m (3.3 ft) average, 108 dB peak
- Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
- Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
- LF Driver 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
- HF Driver 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
- Input Connector Removable locking 4-pin connector with screw-down terminals.
- Max wire size 12 AWG (2.5 mm2)
- Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
- Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
- Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
- Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
- Dimensions 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
- Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
- Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
- Safety Seismic Attachment One point, top surface
- Net Weight 2.2 kg (4.8 lbs, one speaker)
- Shipping Weight 8.2 kg (17.9 lbs, pair in master carton)
- Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
- MTC-24NC new construction bracket, MTC-24MR mud-ring construction bracket, MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers), MTC-48TR tile rail for 1200 mm (4 ft) tile spans
