JBL CONTROL 28-1 nazidni zvučnici

RSD51.304,92
(cena je sa uračunatim PDVom)
Vreme isporuke: 5 do 7 dana!

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Tehničke specifikacije proizvoda

  • Frequency Range (-10 dB) 45 Hz to 20 kHz
  • Frequency Response (+/-3 dB) 62Hz - 16 kHz
  • Power Rating 240 W Continuous Program (2 hrs)
  • 120 W (480W peak), Continuous Pink Noise (2 hrs)
  • 90 W (360W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage 27.5 V RMS (2 hrs), 55.0 V peak
  • Maximum SPL 112 dB ave. Continuous Pink Noise (118 dB peak)
  • Sensitivity 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle 100° x 100°
  • Directivity Factor (Q) 7.3 (averaged 1kHz – 16kHz)
  • Directivity Index (DI) 8.3dB (averaged 1kHz – 16kHz)
  • Nominal Impedance 8 ohms (THRU setting)
  • Crossover Type 2nd order low-pass, 1st order high-pass, plus conjugate shaping

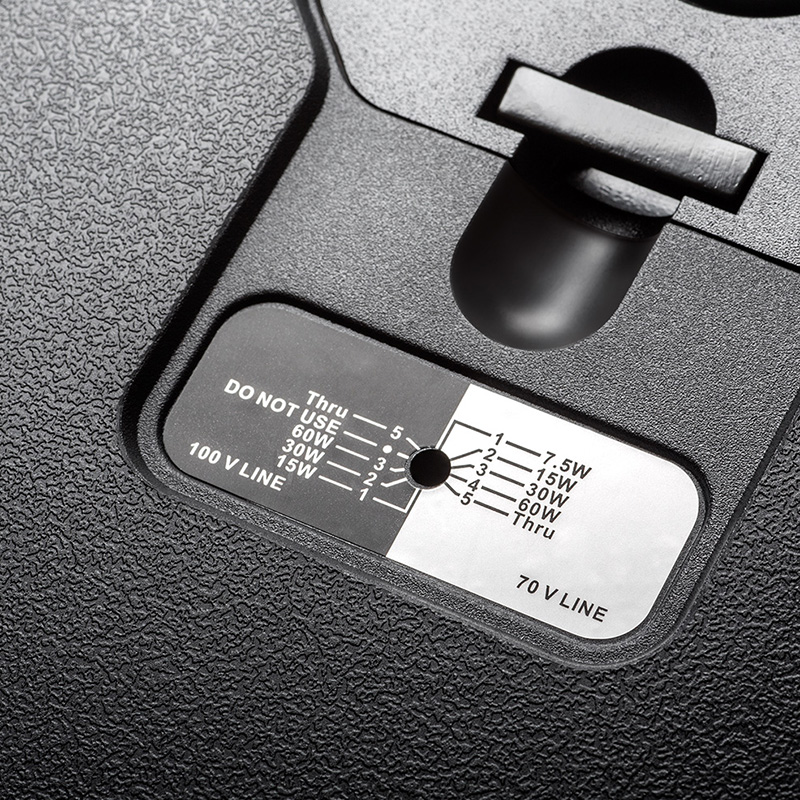

  • Transformer Taps 70V: 60W, 30W, 15W, 7.5W, 100V: 60W, 30W, 15W
  • Insertion Loss: <0.94 dB at any tap setting
  • Thru Setting: 8Ω nominal
  • Recommended Protective
  • High-Pass 45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
  • Low Frequency Driver 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
  • High Frequency Driver 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
  • Enclosure Material High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
  • Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
  • Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
  • Environmental IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.

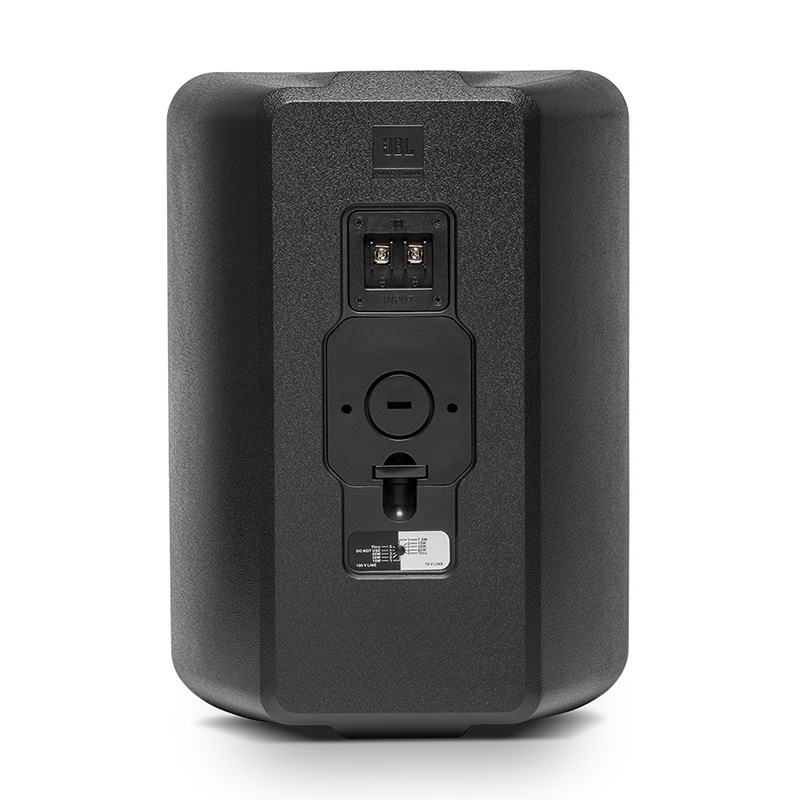

  • Termination Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
  • Agency Rating ROHS-compliant; Transformer UL Recognized per UL1876

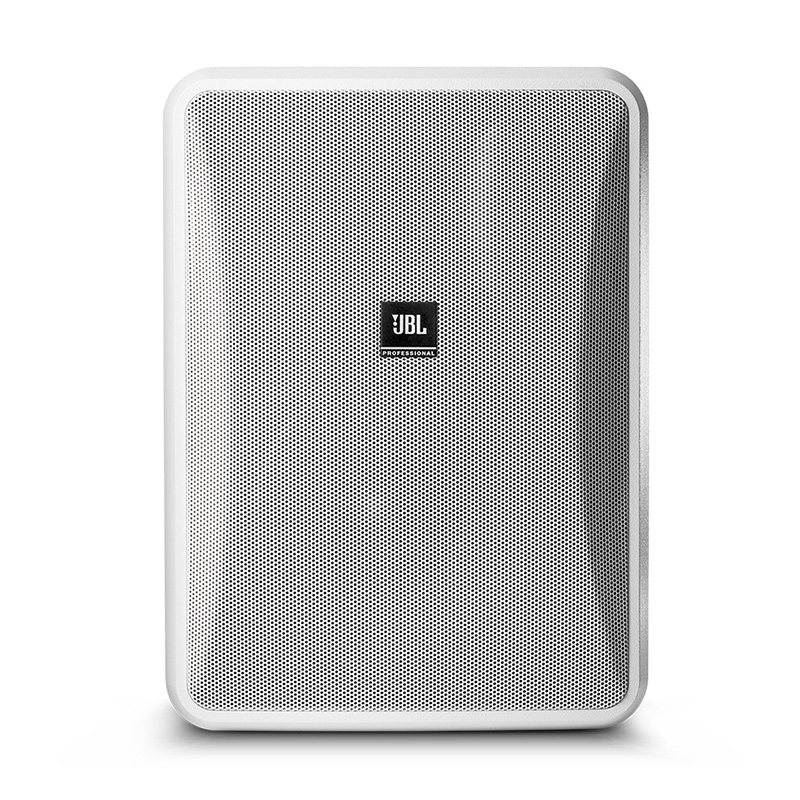

  • Colors Black (RAL9004) or white (-WH, RAL9016)
  • Dimensions (H x W x D) 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
  • Net Weight 6.8 kg (15.0 lbs)
  • Shipping Weight 15.4 kg (34 lbs) pair-packed (for 2 speakers)
  • Included Accessories InvisiBall™ wall-mounting system), 6 mm x 180 mm hex key
  • MTC-28UB-1 – Yolk-type U-bracket (&-WH)
  • MTC-28WMG-1 – WeatherMax grille with backing (&-WH)
  • MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)
