LD Systems MIX 10 A G3 razglasni sistem
Na zalihama
Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.
Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.
Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.
Opis proizvoda

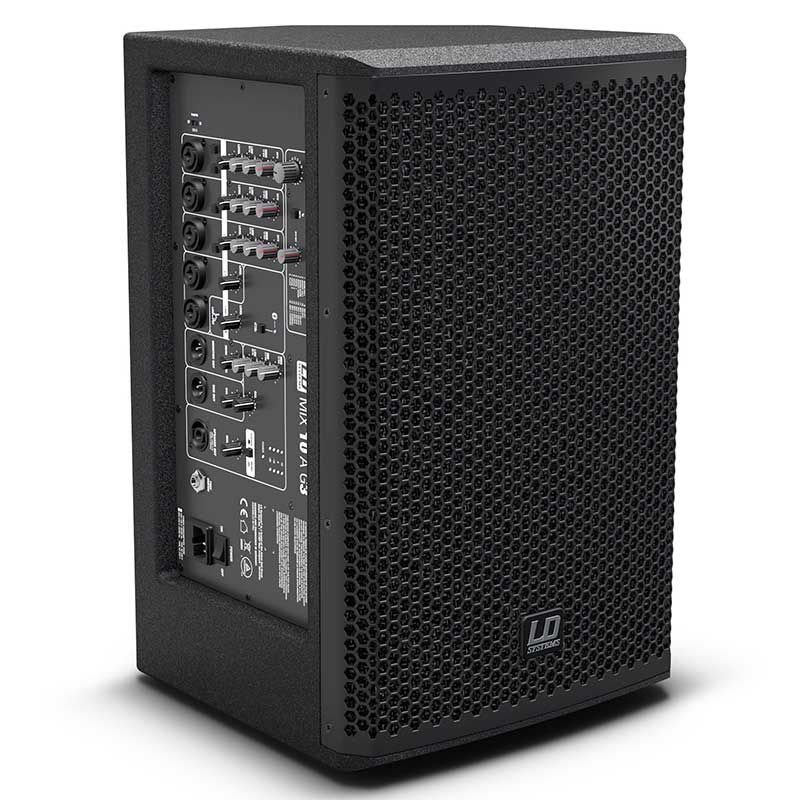

LD Systems MIX 10 A G3 razglasni sistem je aktivan sistem koji kombinuje 7-kanalni mikser sa Class D pojačalom sa 2 x 400 vati snage u piku (2 x 400 watts peak power).

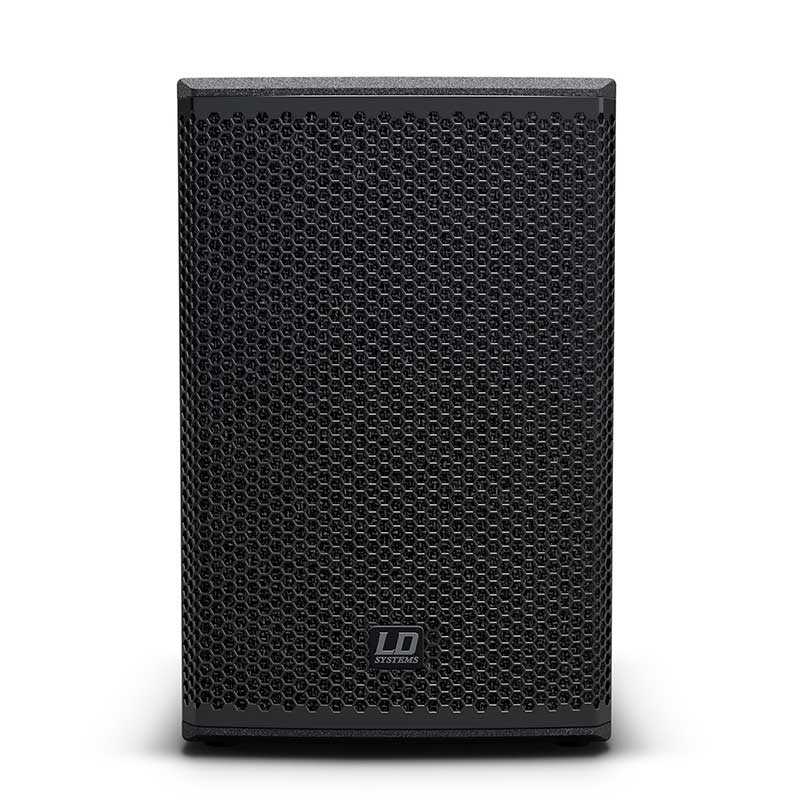

- The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement,
65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.
Accomodating a wide variety of input sources including electric instruments, smartphones, tablets,
MP3 and CD players; the built-in mixer provides 3 microphone channels with 2-band EQ,
48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel.
The output section includes a 3-band master EQ for overall tone shaping;
4-segment LED metering and XLR monitor and subwoofer outputs.
In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets,
limiter and overcurrent, overload, short circuit and thermal protection.
A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

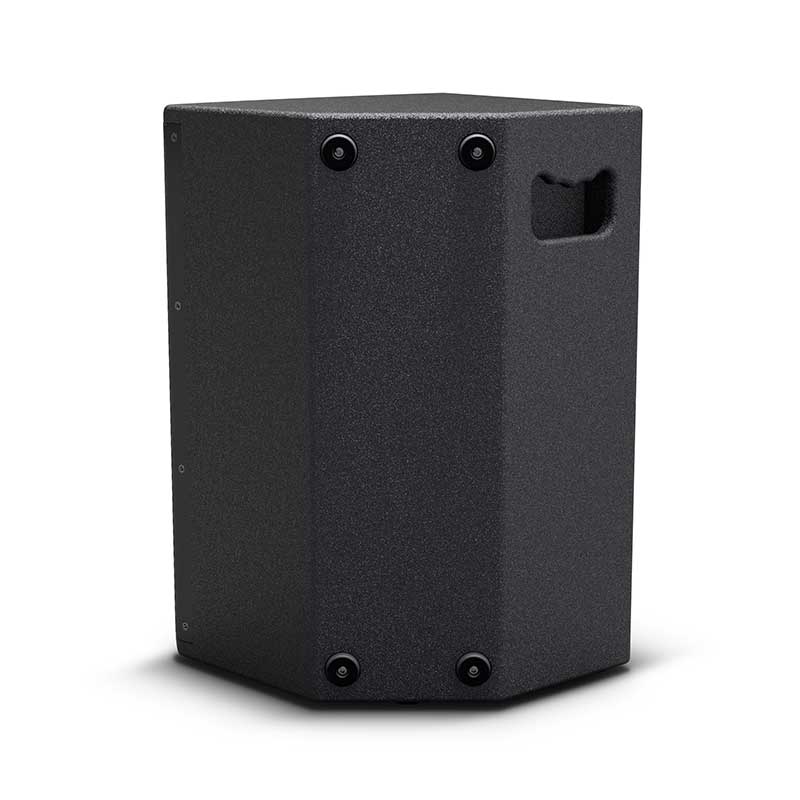

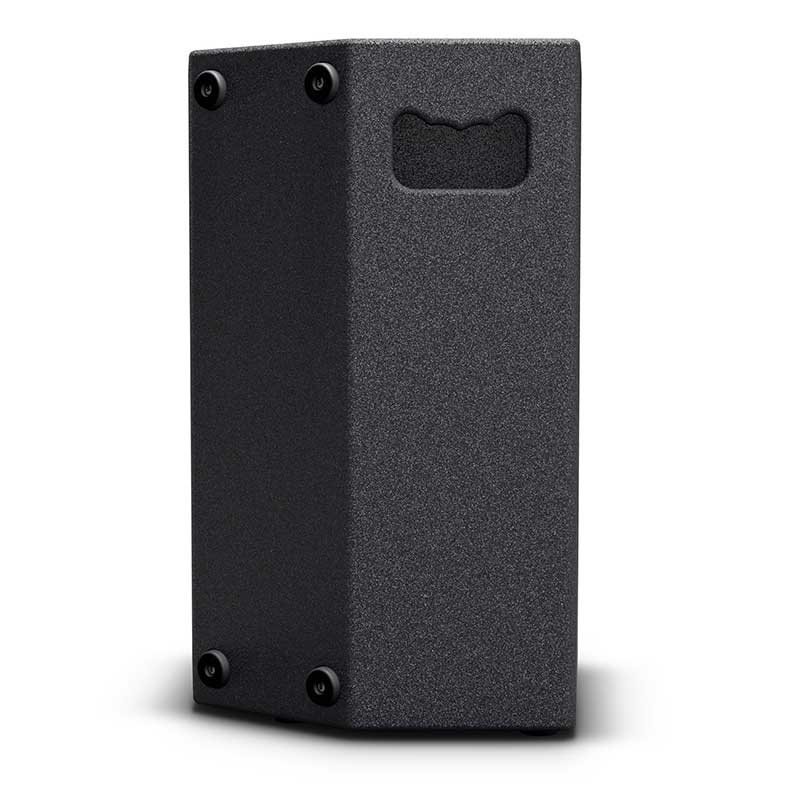

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles.
On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
Posetite sajt proizvođača
Pogledajte i ostatak naše ponude LD Systems zvučnih kutija
Tehničke specifikacije proizvoda
- Product number: LDMIX102AG3
- Product type: PA loudspeaker
- Type: active
- Woofer dimensions: 10"
- Woofer size: 254mm
- Woofer brand: Custom-made
- Tweeter dimensions: 1"
- Tweeter dimensions (mm): 25.4mm
- Tweeter brand: Celestion
- Dispersion (H x V): 80 x 70°
- Frequency response: 65 - 20.000Hz
- Amplifier: Class D
- Amplifier output (RMS): 2 x 200W
- Amplifier output (peak): 2 x 400W
- Max. SPL: 124dB
- Protection circuits: limiter, over-current, thermal overload, overload, short circuit

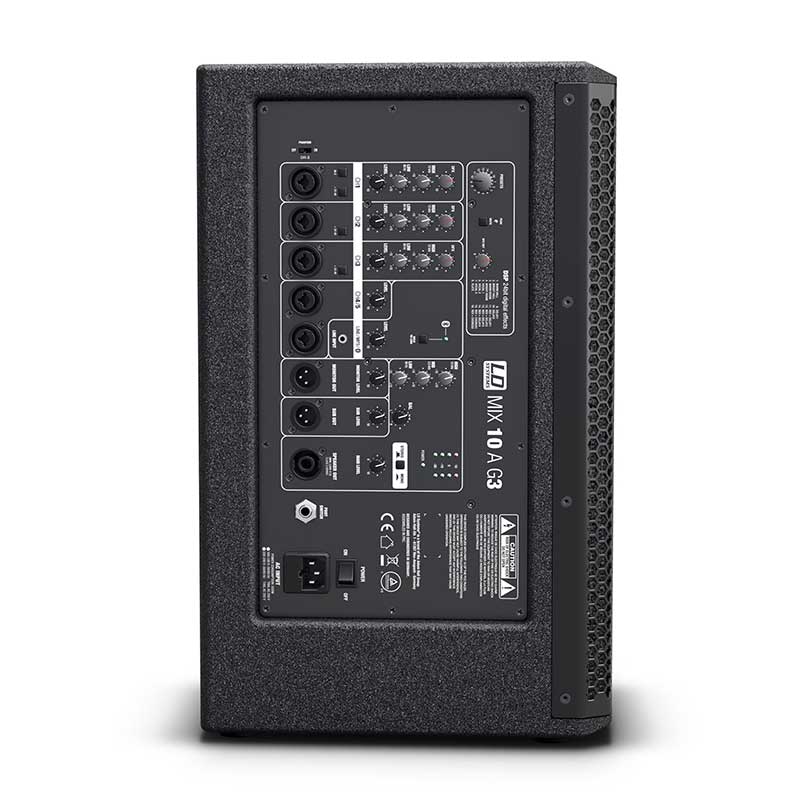

- Mixer
- Channels: 7
- Mic inputs: 3, 6.3 mm jack, XLR
- Controls for Mic Inputs: Hi-Z Switch (channel 1 only), EQ Hi, + 20 db switchable, EQ Low, DFX Send, level
- Line inputs: 2
- Line input connectors: 2 x XLR, 3.5mm TRS
- Controls Line Inputs: level
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Input Impedance Hi-Z Input Connectors: 1000kOhm
- Monitor Line Outputs: 2
- Connector Type Monitor Line Output: XLR
- Controls for Monitor Line Output: Sub level, Monitor Volume
- Max Output Level Line Output Monitor: 17dBu
- Record Outputs: 1
- Increased power main output (at 4 ohm): 200W
- DSP Digital Effects Unit
- DSP Number of Programs: 16
- DSP Controls: DFX Return, presets, Mute switch, footswitch
- DSP Display Elements: Peak LED
- Main Section
- Main section controls: EQ Hi, Balance, mono/stereo, EQ Low, Power On/Off, switch operating voltage, Phantom Power, EQ Mid, Master Volume
- Main section indicators: 4-segment Level Meter, power LED
- Phantom power: 48 V
- Mains connector: IEC socket
- Operating voltage: SMPS, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, automatic switching
- Power consumption: 500W
- Cabinet
- Cabinet construction: vented
- Cabinet material: 16 mm Plywood
- Cabinet surface: texture paint
- Cabinet colour: Black
- Width: 315mm
- Height: 489mm
- Depth: 307mm
- Weight: 12,3kg
- Other features: Bluetooth, Ergonomic handle, dual-tilt flange (0°/5°)
