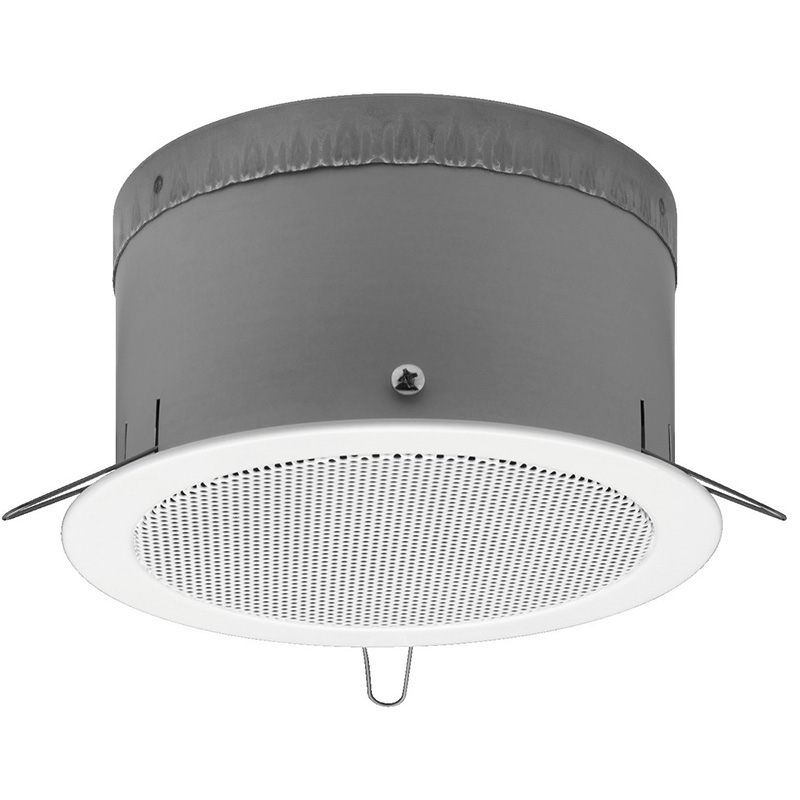

MONACOR EDL-165AB/WS plafonski 100V zvučnik

Garancija dve godine!

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

PA A/B ceiling speaker, with EN 54-24 certification for systems with A/B speaker distribution according to EN 60849.
  • 100 V line technique
  • 13 cm full range speaker with dual voice coil
  • 2 separate transformers with power taps with 6/3/1.5 W each
  • Connection via 2 ceramic screw terminals inside the cabinet
  • Quick mounting with stainless steel spring clips
  • Metal housing with fire protection cover and protective metal front grille
  • Ball-proof according to DIN 18032, Part 3

Tehničke specifikacije proizvoda

  • Transmission method 100 V
  • Frequency range 80-19,000 Hz
  • Power rating (RMS) 2 x 6/3/1.5 W
  • Sensitivity 93 dB/W/m
  • Max. rated SPL 101 dB
  • Radiation angle, horizontal 180°
  • Radiation angle, vertical 180°
  • Mounting cutout Ø 140-150 mm
  • Mounting depth 90 mm
  • Dimensions Ø 170 mm x 95 mm
  • Outside diameter Ø 170 mm
  • Width Ø 170 mm
  • Depth 95 mm
  • Admiss. ambient temp. 0-40 °C
  • Weight 1.4 kg
  • Packing unit 1
  • Type of speaker 130
